Hanging feeder

Hanging feeder

Introduction of hanging feeder:
The feeder is a "feeder" in the general sense, just because each place has a different name, but its essence and function are basically the same. Suspended feeding equipment is an auxiliary equipment in the mechanized storage and transportation system of lime production enterprises. Its main function is to continuously and uniformly feed the processed or unprocessed materials from a certain equipment (hopper, storage bin, etc.) Undertake equipment or transport machinery. The working principle of the hanging feeder is to uniformly or quantitatively feed blocky, granular and powdery materials from the storage bin or hopper to the receiving device. For example, feeding, batching, etc. to crushing, coal preparation, screening, transportation, packaging machinery, etc.

Features of suspension feeder:
(1) Small size, light weight, simple structure, easy installation and maintenance;
(2) There are no rotating parts, no lubrication, no motor and reducer, and the running cost is low;
(3) Low noise, which is conducive to improving the working environment;
(4) Low power consumption and high power factor;
(5) The equipment works in a state far beyond resonance, so the amplitude is stable, the operation is reliable, and the adaptability to various materials is strong;
(4) Suspension feeder can adjust the feeding amount steplessly by adjusting the opening angle of the thyristor, and can realize the centralized control and automatic control of the production process.

Suspension feeder parameters:
Model Feed Trough
Size(mm)
Productivity(t/h)   Maximum Feeding
Size(mm)
Vibration Frequency
(r/min)
Double Amplitude
(mm)
Vibrator
Model
Rated Voltage
(V)
Rated Current
(A)
Motor Power
(kw)
Weight
(kg)
Level -10°
FKX-703 700×1029×250 120 170 200 1450 4 ZG410 380 2×1.53 2×0.55 389
FKX-1003 1000×1750×250 270 380 300 1450 4 ZG420 380 2×2.71 2×1.1 762
FKX-1253 1250×2000×315 460 650 350 1450 4 ZG432 380 2×3.51 2×1.5 1099
FKX-1503 1500×2250×300 720 1000 500 1450 3.5 ZG440 380 2×5.19 2×2.2 1477
Note: Parameters are subject to update without notice, please contact us.

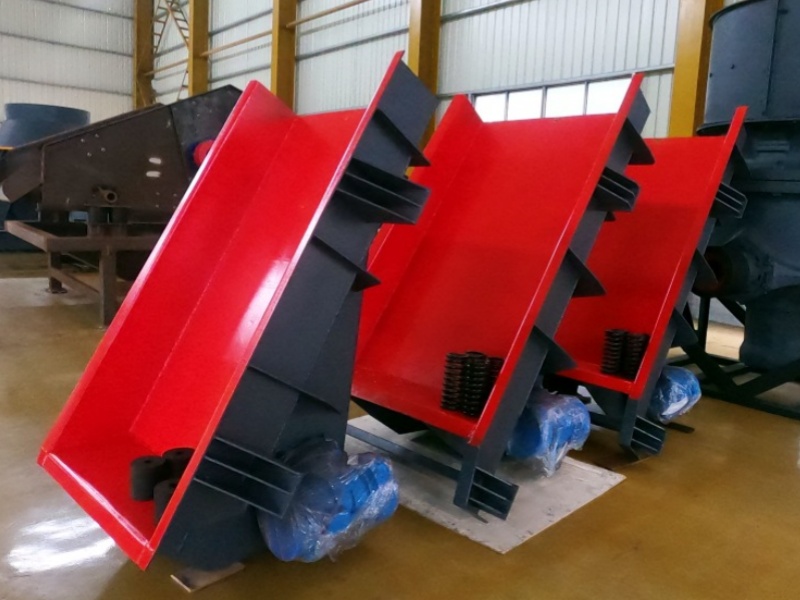

Product pictures of suspension feeder:

Hanging feeder

Download the product sample of the suspension feeder:
Hanging feeder product samples
